Color Lab

Summary

Color Lab is a browser-native color science instrument for exploring RGB gamuts as interactive 3D solids, slicing them with arbitrary planes, inspecting the stimulus-to-display transform chain, and designing perceptual palette ramps. It is a live public beta on a Beta → RC → 1.0.0 release track.

This is independent R&D by Sebastián Ferreyra Pons, featured by Infomerx — not a client engagement, commercial SaaS, or Infomerx product. The project is MIT open source on GitHub; the value here is the working system: observer-aware colorimetry, WebGL rendering, per-list ramp pipelines, shareable documents, and teaching UX in one public browser tool.

Challenge

Most browser color tools flatten color into sliders, swatches, or 2D pickers. That hides the shape of the gamut, the active transfer curve, the chosen interpolation space, the active observer model, and the point where a palette leaves displayable range. Color Lab makes those relationships visible and interactive.

Approach

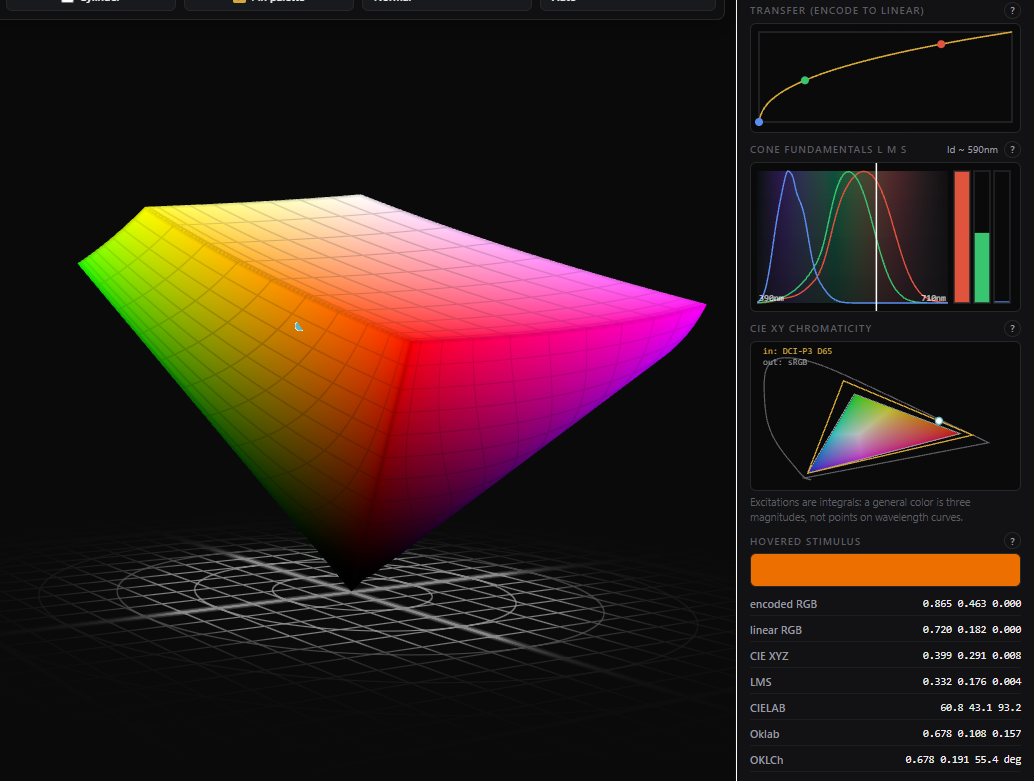

The app treats color spaces as explorable geometry. A TypeScript color core defines primaries, white points, transfer curves, RGB↔XYZ matrices, Bradford chromatic adaptation, LMS cone fits, CIELAB, Oklab, gamut mapping, and color-vision simulation. Derived matrices feed both the WebGL renderer and CPU-side picking, so hover readouts match what is drawn.

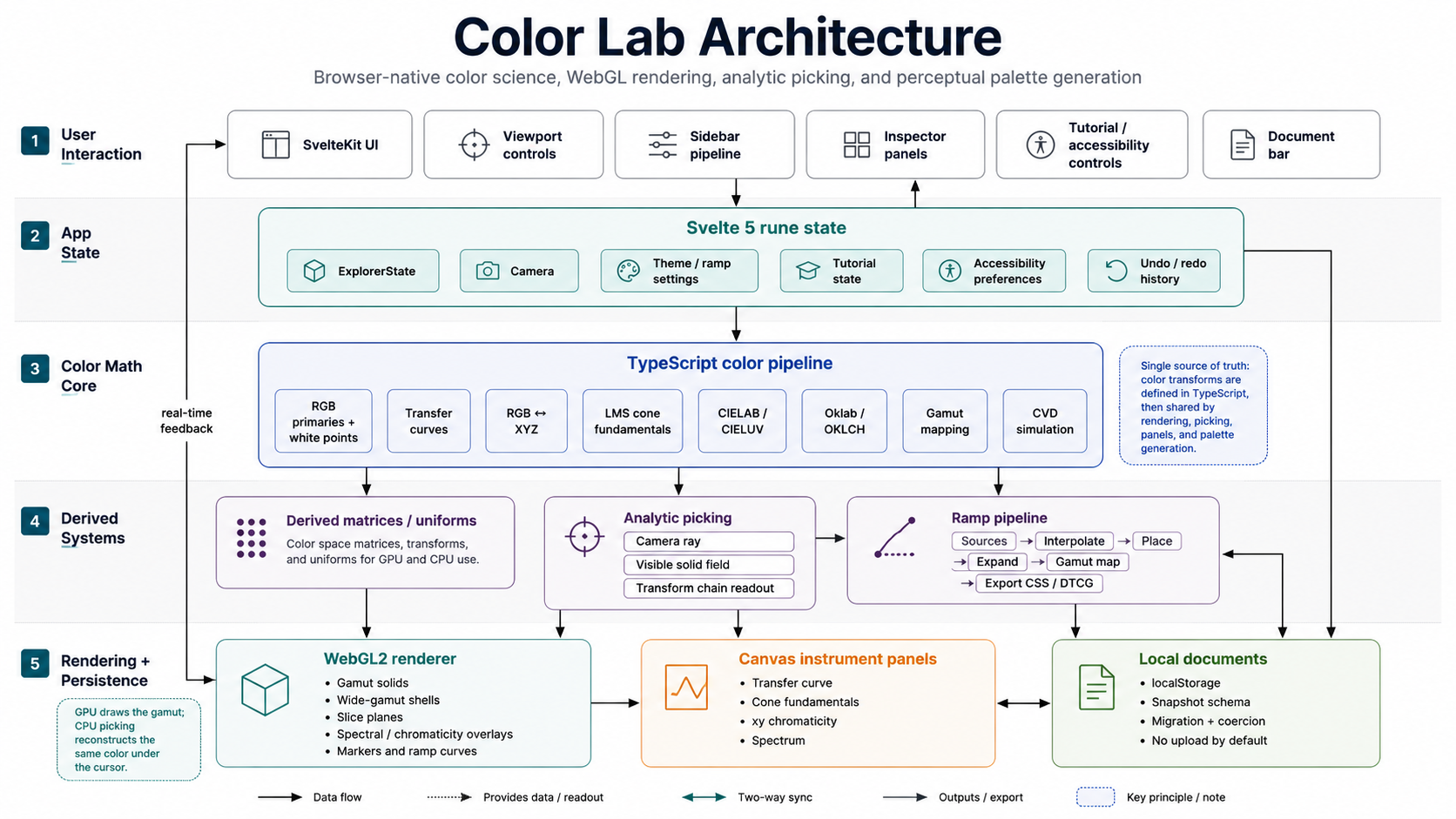

Architecture

• Color math — pure TypeScript functions for matrices, transfer curves, gamuts, Lab/Oklab, LMS, Bradford CAT, gamut mapping, and CVD simulation; observer and chromaticity registries.
• Engine state — Svelte rune state, camera math, slice planes, picking, per-list ListPipeline settings (schema v13), theme ramp generation, and named undo/redo snapshots.
• Renderer — WebGL2 programs for gamut solids, shells, slice overlays, spectral/chromaticity aids, dynamic observer matrices, markers, floor grid, and ramp curves.
• Documents — named snapshots in localStorage; Save / Share / Import via schema detection, migration, coercion, and tests.

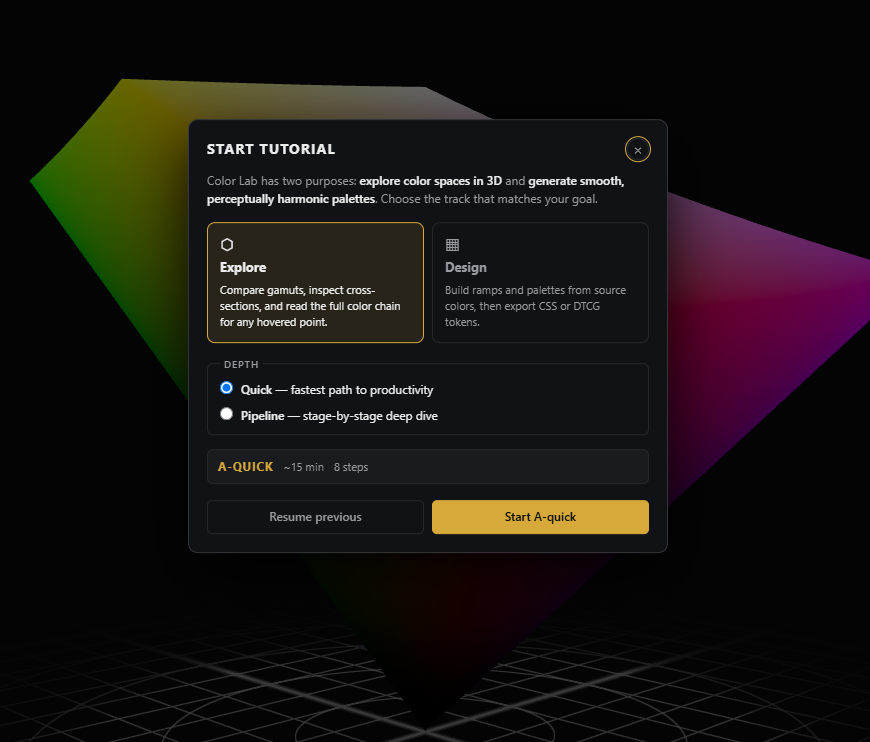

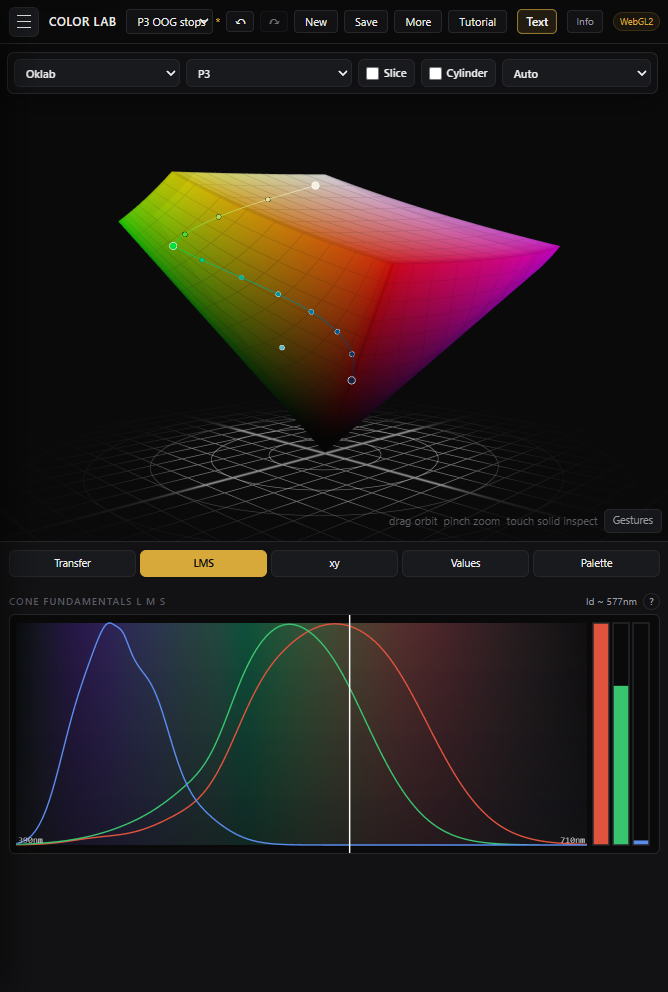

• Learning surface — pipeline rail, tutorial lanes, help popovers, examples, light/dark theme, mobile layout, keyboard reference, and readability controls.

Key technical highlights

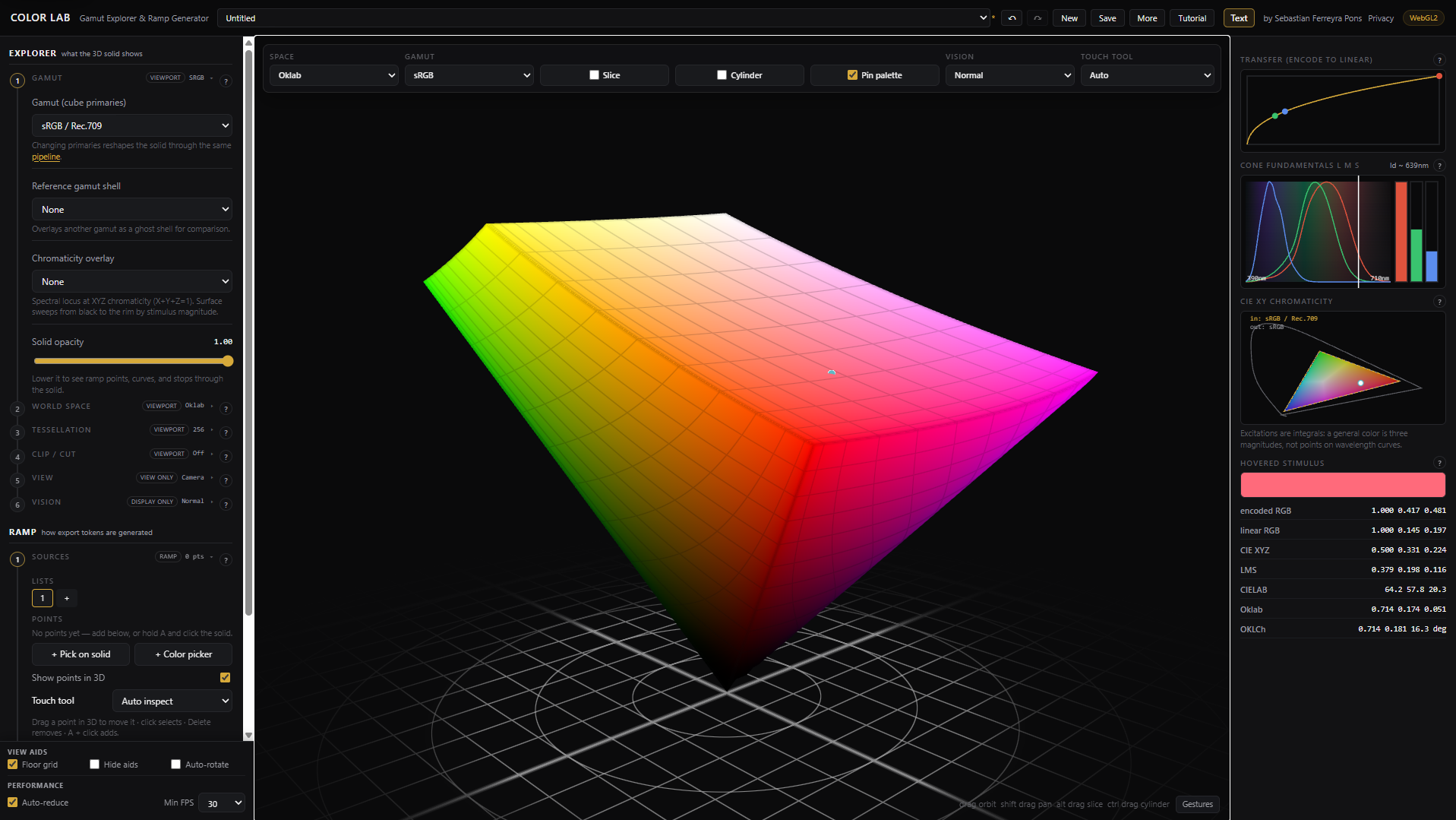

• 3D gamut exploration across sRGB, P3, Rec.2020, NTSC, EBU, SMPTE-C, and CIE RGB.
• Observer-aware colorimetry — 32 observer datasets; dynamic LMS matrices; opponent-plane and MacLeod-Boynton views; Bradford CAT for non-D65 gamuts.

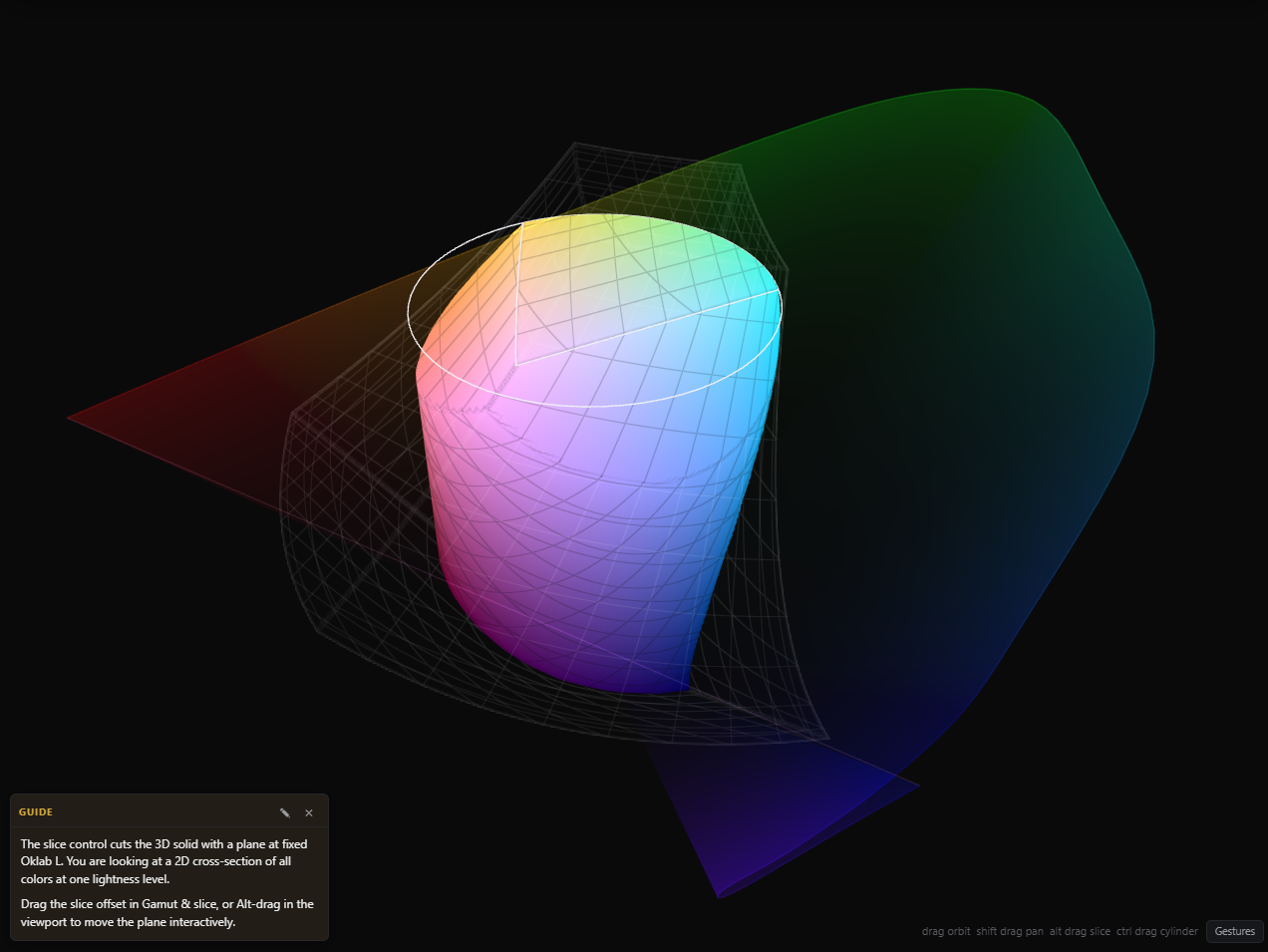

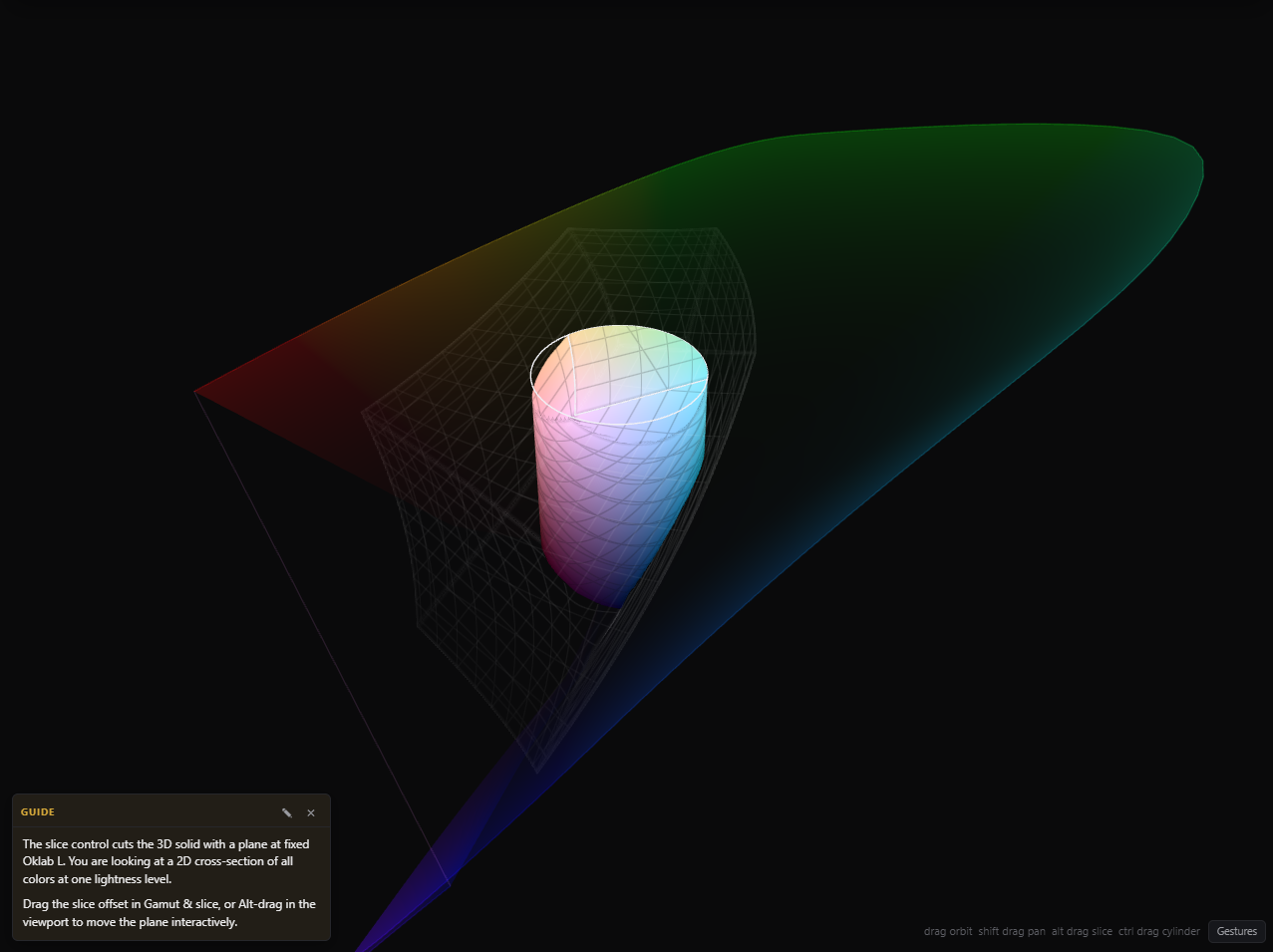

• Arbitrary slicing and cylindrical cutaways for inspecting cross-sections of color spaces.

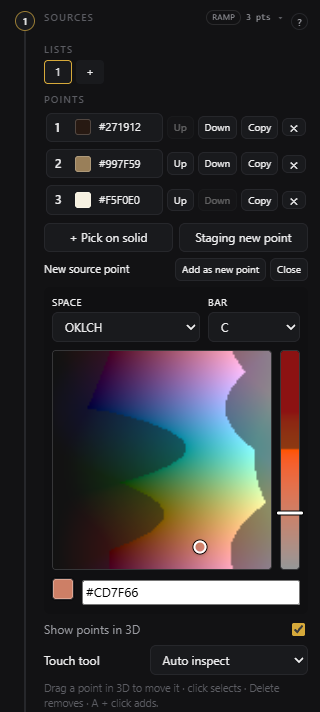

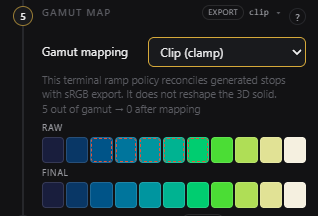

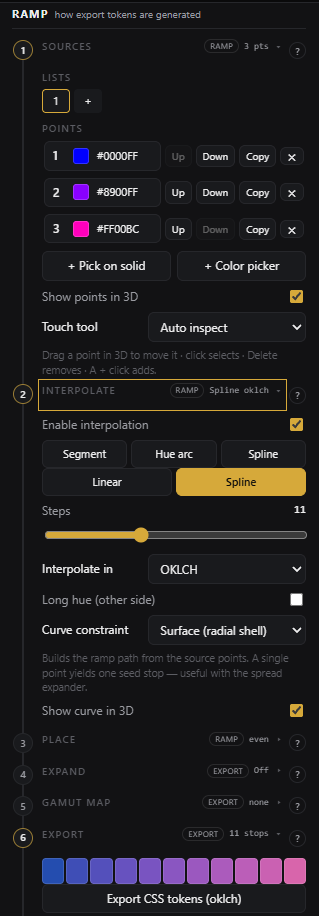

• Per-list ramp pipeline — each source list owns interpolate / place / expand / constraints; shared terminal gamut map; OOG badges and diff preview; CSS/DTCG export.
• Document sharing — client-side Save, Share (link · JSON · hash), and Import without a backend.

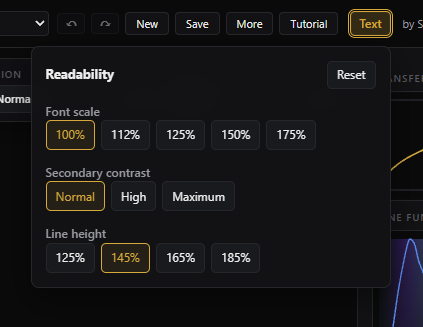

• Accessibility as product surface — keyboard affordances, light/dark theme, neutral viewport backdrop, readability preferences, and CVD simulation.

Development timeline

Color Lab started from older Svelte/Rollup shader experiments and a 2020 instanced-rendering prototype, then was rebuilt in June 2026 as a SvelteKit application. June 9–12 brought core WebGL architecture, deployment, mobile interaction, pipeline-driven palette controls, multi-list editing, tutorials, and undo/redo. June 13–16 added observer registries, per-list pipelines (schema v13), document sharing, pipeline rail navigation, Bradford CAT, light theme, open-source release discipline, and public beta tags 1.0.0-beta.1 and 1.0.0-beta.2.

Tradeoffs

• WebGL2 first — broad browser availability now, with renderer isolation that leaves a WebGPU path open later.
• Oklab as practical default — CIELAB remains available for comparison, but modern perceptual ramp work centers on Oklab/OKLCH.
• Pipeline over magic — users see each palette stage instead of receiving a black-box generated answer; per-list pipelines trade simplicity for debuggability.
• Active-colorspace gamut map — sRGB analytic path today; generic target-gamut solver deferred.
• Client-side share links — full snapshots in URLs/JSON instead of a collaboration backend; private by default.
• Beta document schema — rich snapshots enable deep sharing; migrations may continue until 1.0.0.

Outcomes

Color Lab is a live public beta that demonstrates real-time browser graphics, observer-aware colorimetry, per-list palette pipelines, shareable documents, release-gate discipline, and teaching-oriented UX. Its strongest signal is not that it is a color picker; it is that a graphics-heavy, math-heavy browser system can remain explainable, inspectable, and usable.

Direction

Color Lab is on an explicit Beta → RC → 1.0.0 release track. Phase A pre-beta gates completed at 1.0.0-beta.1; ongoing beta polish continues toward a stable 1.0.0.

Near-term engineering themes include:

• Color-space roles — Active gamut vs world space vs Display gamut; future global Color Context UI.
• Display gamut preferences — calibrated profiles in localStorage and Explorer display-mapping.
• Compositor workflow — PNG ramp strip export for Resolve, TouchDesigner, Resolume, Fusion.
• Integrator formats — compact ramp interchange JSON and optional npm-installable color engine.
• UX polish — glyph-width responsive breakpoints; gamut-map raw/final swatch preview; direct xy picking.

WebGPU, HDR, and spectral intensity volume overlays remain research or deferred — named in design docs, not promised on the beta track.
